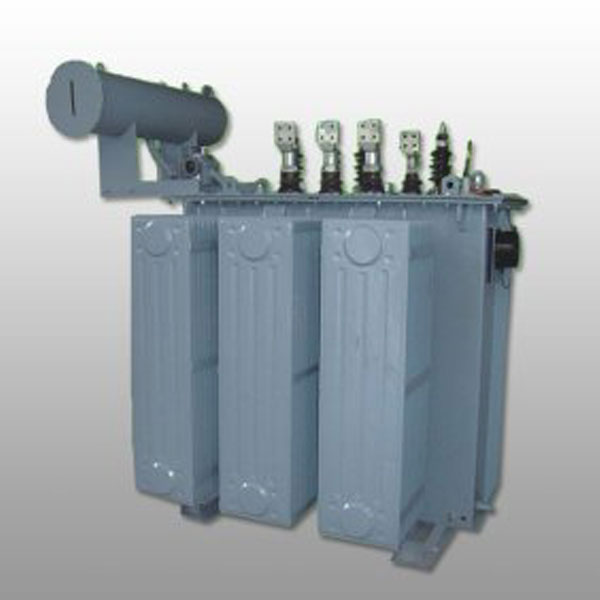

S9 Type 10kv Series Sealed Tank Distribution Transformer

General introduction of S9 Type 10kv Series Sealed Tank Distribution Transformer:

The three-phase oil-immersed transformer applies new type insulation structure and improves the ability of short-circuit resistance.The iron core is made of high-quality cold-rolled silicon-steel plate.High-voltage winding group is made of high quality copper wires and it adopts multilayer cylindrical structure.All fasteners have been processed with special treatment to prevent them from loosening.

  • Introduction
  • Specification
  • Contact Now

Environmental conditions of S9 Type 10kv Series Sealed Tank Distribution Transformer

1. Type: Outdoor
2. Normal Service Conditions:
3. The height above the sea level is below 1000m;
4. Ambient temperature: Highest air temperature+40 ℃, Lowest air temperature-25℃
5. Relative air humidity:≤90%(+25℃)
6. installation site: no corrosion gas, No obvious dirt
For Agricultural power distribution and lighting

Transformer Standard of S9 Type 10kv Series Sealed Tank Distribution Transformer

GB1094.1~2-1996 distribution transformer

GB1094.3,5-2003 distribution transformer

GB/T6451-2008 Three phase oil immersed distribution transformer


Model description of S9 Type 10kv Series Sealed Tank Distribution Transformer:

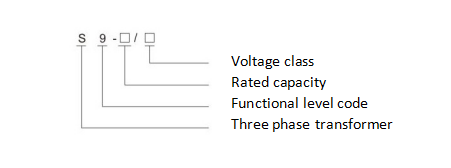

Model description of S9 Type 10kv Series Sealed Tank Distribution Transformer:

Features of S9 Type 10kv Series Sealed Tank Distribution Transformer

A. Good heat emission, big overload capacity. Can work without wind machine for long time under 130 overload, and be full load without compulsive wind cool without capacity descending under IP45 condition.
B. Perfect safe and resistance to fire operating can be combusting for long period under 800ºC and without smoke
C. Strong resistance to thermal shock(can be full load immediately at -50ºC)
D. Complete waterproof and airproof.
E. No partial discharge
F. Good hydrophobility and good resistance to alkaline cauterization and fundal influence
G. Environmental, low noise, no deleerious gas, easy to decomposition

Deliver and shipment :

Sea transportation. 1 set Transformer per wooden carton.

Production Process of S9 Type 10kv Series Sealed Tank Distribution Transformer


Specification of S9 Type 10kv Series Sealed Tank Distribution Transformer

Technical Data of 11kV S9 Series Distribution Transformer

Rated Capacity

Voltage Group(kV)

Connection Method

Loss (kW)

No-load current

Impedance Voltage

Weight (kg)

(mm)

Gauge

(L)

(W)

(H)


(kVA)

HV

LV


No-load

Load

%

%

Machine

Oil

Gross

Dimension

Vertical

Horizontal

5




0.07

0.35

4

4

50

45

145

550

450

800

400

350

10




0.09

0.4

3.5

70

55

185

550

450

800

400

350

20




0.11

0.52

3

110

60

235

660

505

850

400

350

30




0.13

0.63/0.6

2.3

130

65

265

660

530

870

450

340

50




0.17

0.91/0.87

2

195

80

365

740

600

930

450

380

63




0.2

1.09/1.04

1.9

230

80

400

720

620

1000

450

380

80




0.25

1.31/1.25

1.9

260

95

460

770

640

1030

450

430

100




0.29

1.58/1.5

1.8

300

95

510

820

710

970

550

450

125

11



0.34

1.89/1.8

1.7

335

115

585

1040

680

1080

550

470

160

10.5



0.4

2.31/2.2

1.6

405

130

685

1090

670

1130

550

520

200

10

0.4

Yyn0

0.48

2.73/2.6

1.5

490

150

810

1160

760

1090

550

520

250

0.69

Dyn11

0.56

3.2/3.05

1.4

565

170

935

1215

775

1180

650

550

315

6



0.67

3.83/3.65

1.4

655

200

1095

1345

890

1205

650

550

400

6.3



0.8

4.52/4.3

1.3

840

250

1385

1450

935

1240

650

550

500




0.96

5.41/5.15

1.2

935

235

1505

1515

970

1280

750

600

630




1.2

6.2

1.1

4.5

1100

330

1830

1595

1040

1315

850

660

800




1.4

7.5

1

1360

370

2225

1765

1170

1350

850

660

1000




1.7

10.3

1

1455

475

2555

1855

1255

1490

850

660

1250




1.95

12

0.9

1715

545

3140

1885

1270

1590

850

660

1600




2.4

14.5

0.8

2095

630

3680

1950

1620

2020

850

700

2000




2.8

19.8

0.8

2340

715

4190

2060

1740

2050

820

820

2500




3.3

23

0.7

2920

830

5100

2250

1800

2100

1070

1070
