Mining electrical systems operate under demanding conditions. Methane, combustible dust, humidity, vibration, limited ventilation, and restricted installation space can all influence transformer selection. For these environments, a dry type explosion proof transformer provides a specialized solution for voltage conversion while addressing the safety requirements of mining applications.
Unlike standard industrial transformers, a mining explosion transformer must be selected according to the mine's hazardous environment, voltage system, load requirements, protection system, and applicable certification.
YueBian Electric offers mining-specific dry-type transformer solutions, including its KBSG9 series mining flameproof dry-type transformer. The manufacturer states that this series is designed for mines containing firedamp, dust, and explosive gases under specified operating conditions.
Underground mines can expose electrical equipment to conditions rarely found in conventional buildings or factories.
Important environmental factors include:
Combustible gases such as methane
Coal and mineral dust
High humidity
Mechanical vibration
Restricted ventilation
Temperature variations
Limited maintenance space
Continuous or fluctuating electrical loads
Therefore, a transformer intended for general industrial use should not automatically be considered suitable for underground mining.
The U.S. Mine Safety and Health Administration (MSHA) explains that explosion-proof equipment is used as part of mine electrical safety measures and that explosion-proof enclosures are designed to prevent an internal ignition from igniting the surrounding atmosphere.
A dry type explosion proof transformer combines dry-type insulation technology with construction and protection intended for a specified hazardous environment.
Instead of using transformer oil as the main insulating medium, dry-type transformers use solid insulation and air-based cooling. For mining applications, additional protective construction and certification requirements apply.
YueBian Electric's KBSG9 series is described as a three-phase, 50 Hz mining flameproof dry-type transformer. Its stated service conditions include an altitude of up to 1,000 m, ambient temperatures from -5°C to 40°C, and relative humidity up to 95% at 25°C.
The manufacturer also identifies high mechanical strength, low temperature rise, good cooling performance, waterproof characteristics, and convenient maintenance as key features.
The KBSG9 series is particularly relevant to buyers searching for a mining explosion transformer for underground distribution.
According to YueBian Electric, the KBSG9-50-1600/10(6) series complies with GB 8286-2005 requirements for mining flameproof movable substations. The product uses H-class or C-class insulation materials and an ANAN cooling method.
Feature | Application Benefit |
Dry-type insulation | No transformer oil is required |
Flameproof construction | Designed for specified hazardous mining environments |
High mechanical strength | Suitable for demanding operating conditions |
Low temperature rise | Helps control thermal stress |
Good cooling performance | Supports continuous operation |
Waterproof characteristics | Helps address humid environments |
Three-phase 50 Hz | Suitable for common mining power systems |
50–1600 kVA range | Supports different underground loads |
Modern mines depend on electricity for conveyors, pumps, ventilation systems, drilling equipment, cutting machinery, lighting, and other auxiliary equipment.
A mining transformer can be installed close to underground loads to convert the available supply voltage to the level required by mining machinery. This can help create a practical distribution system while reducing unnecessary distribution distances.
However, installation must consider hazardous-gas conditions, ventilation, grounding, protection, certification, and local regulations.
For example, OSHA's underground-construction requirements address electrical equipment, ventilation, hazardous gases, and transformer installation conditions.
Coal mines are one of the most important applications because methane and combustible dust can create serious ignition hazards.
A properly certified mining transformer can supply power to underground equipment while meeting the requirements of the intended hazardous environment.
Conveyors, pumps, drilling machines, cutting equipment, and other high-power machinery require stable electrical supplies. Transformer capacity and voltage should therefore be selected according to the equipment's actual operating requirements.
A mining transformer can serve as part of an underground distribution network, converting higher distribution voltages into lower voltages suitable for local equipment.
Mining operations can change as excavation progresses. Relocatable equipment may therefore be useful where electrical loads and working areas change over time.
This is particularly relevant to mining buyers searching for a mining flameproof substation in stock. Availability should always be confirmed together with capacity, voltage, certification, dimensions, and delivery requirements.
Selecting a mining transformer requires more than choosing the required kVA.
Primary and secondary voltages must match the mine's distribution system and connected equipment. YueBian's KBSG9 range covers capacities from 50 kVA to 1600 kVA for the referenced series.
The buyer should provide information about methane, combustible dust, humidity, temperature, altitude, ventilation, and installation location.
Underground transformers may operate continuously under demanding loads. Cooling capacity and temperature rise should therefore be considered carefully.
Transportation, vibration, installation, and movement can place additional mechanical demands on mining equipment.
Certification is critical. MSHA explains that its Electrical Safety Division evaluates and tests mining electrical equipment against applicable requirements and provides approvals or certifications for permitted applications.
International buyers should therefore identify the certification requirements applicable to their specific country and mine.
When evaluating a dry type transformer manufacturer, mining buyers should distinguish general dry-transformer manufacturing capability from specialized mining experience.
A supplier should be able to provide:
Technical datasheets
Test reports
Relevant certificates
Insulation information
Temperature-rise data
Dimensions and weight
Installation instructions
Warranty information
Export experience
After-sales support

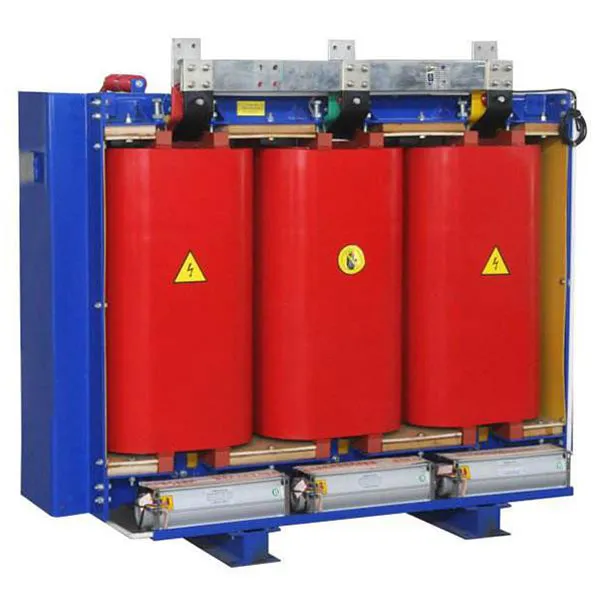

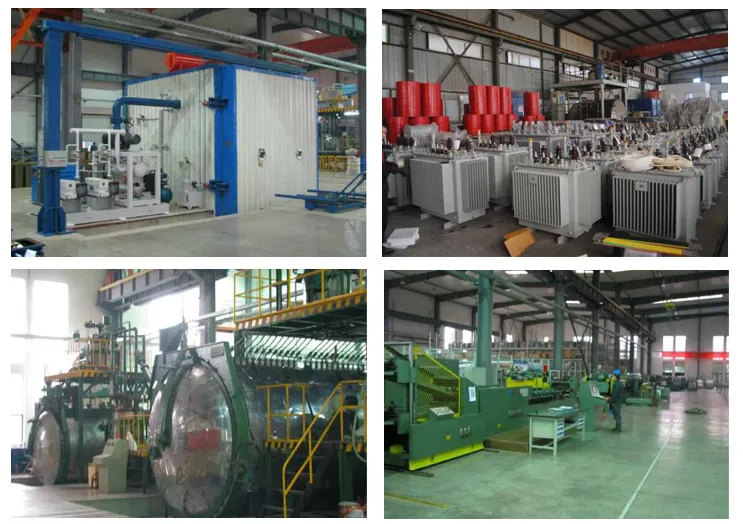

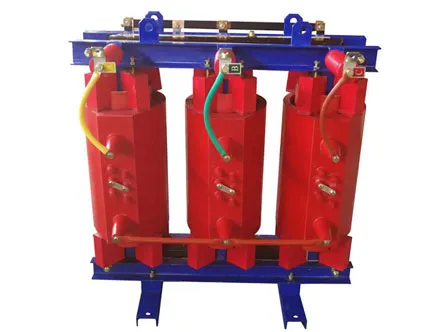

YueBian Electric states that it has specialized in dry-type transformers since 1984. Its product portfolio includes cast resin, non-encapsulated coil, and amorphous alloy dry-type transformers, as well as specialized mining products.
For buyers comparing dry type distribution transformer manufacturers, mining-specific certification and technical capability should be evaluated separately from general product range.
It is a dry-type transformer designed and certified for specified hazardous environments where combustible gas or dust may create an ignition risk.
It converts electrical voltage for underground mining equipment and distribution systems while meeting the applicable safety and environmental requirements.
Not necessarily. A conventional dry transformer may not have the mining-specific construction or certification required for hazardous underground environments.
KBSG9 is YueBian Electric's series of mining flameproof dry-type transformers. The manufacturer states that it is designed for mines containing firedamp, dust, and explosive gases under specified service conditions.
Provide capacity, primary and secondary voltage, frequency, installation environment, hazardous-gas conditions, certification requirements, dimensions, cooling requirements, and delivery location.
Check manufacturing experience, mining-specific products, testing capabilities, certifications, technical documentation, export experience, and after-sales service instead of comparing price alone.
A dry type explosion proof transformer is a specialized solution for mining environments where combustible gases, dust, humidity, and restricted installation conditions create additional electrical-safety challenges.
The KBSG9 mining flameproof dry-type transformer from YueBian Electric is designed specifically for mining applications, with stated features including dry-type insulation, flameproof construction, high mechanical strength, low temperature rise, waterproof characteristics, and capacities from 50 kVA to 1600 kVA for the referenced series.
For buyers looking for a dry type transformer supplier, the most important consideration is not simply price or availability. The transformer must match the mine's electrical requirements, hazardous environment, certification standards, and operating conditions.
