Dry Type Transformer

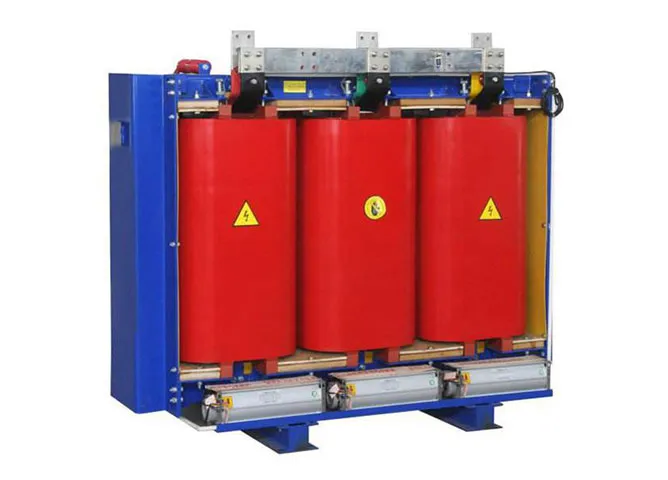

The Dry type power transformer is also called a dry cast resin transformer. We are a qualified suppliers of dry type power transformer among thousands of manufacturers and in China. Our company has been specialized in dry type transformer since 1984. So far, the products have been exported to 10 countries. With various models like amorphous alloy series, resin insulation series, non-encapsulated coil series, stable quality and competitive, our products are highly appraised by customers. Welcome contact us for further information.
Types of Dry Type Transformer for Sale

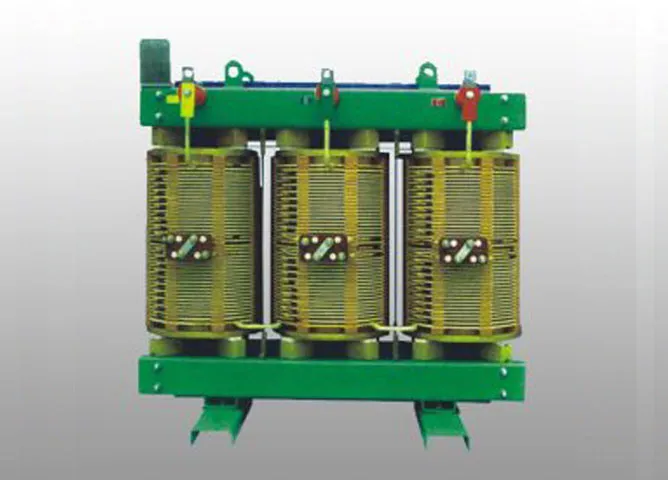

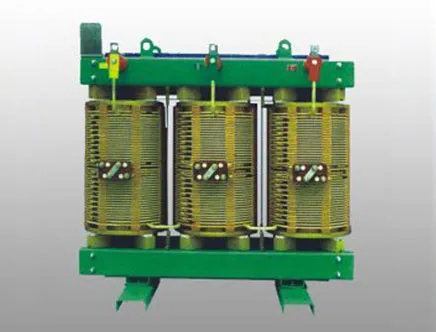

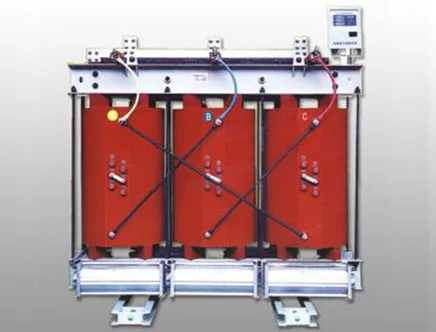

SG(B) 10 Type 10kv Series Non Encapsulated Coil Transformer
- Capacity: 80 KVA to 2500 KVA
- Primary Voltage: 6 KV to 11 KV

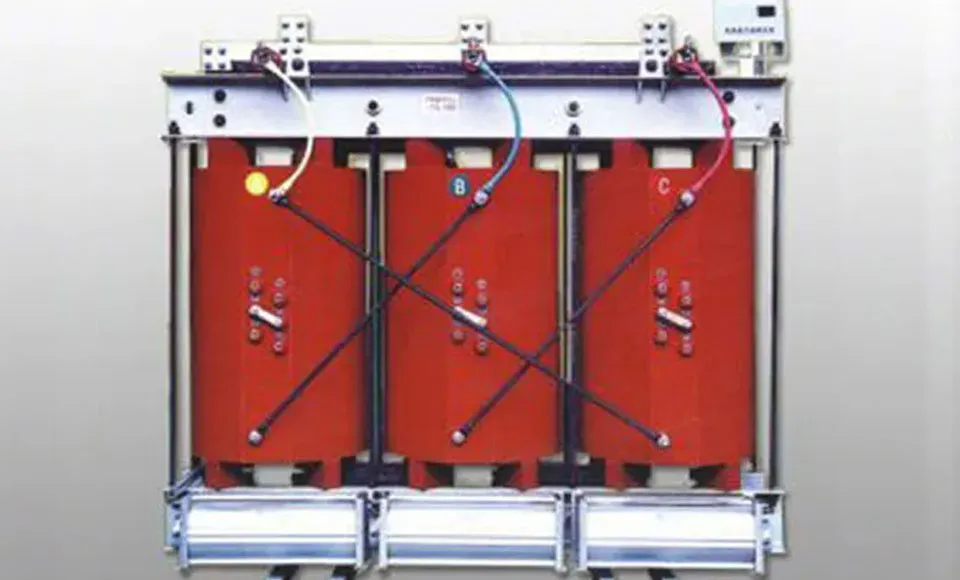

Advantages of Dry Type Transformers
- Safe, fireproof, non-polluting, can be directly operated at the load center;
- Adopting domestic advanced technology, high mechanical strength, strong resistance to short circuit, small partial discharge, good thermal stability, high reliability and long service life;
- Low loss, low noise, obvious energy saving effect, maintenance free;
- Good heat dissipation performance, strong overload capacity, and increased capacity operation when forced air cooling;
- Good moisture resistance, suitable for high humidity and other harsh environments;
- Dry-type power transformers can be equipped with a complete temperature detection and protection system. The intelligent signal temperature control system can automatically detect and patrol the respective working temperatures of the three-phase windings, automatically start and stop the fan, and have alarm, trip and other function settings;
- Small size, light weight, less floor space and low installation cost.

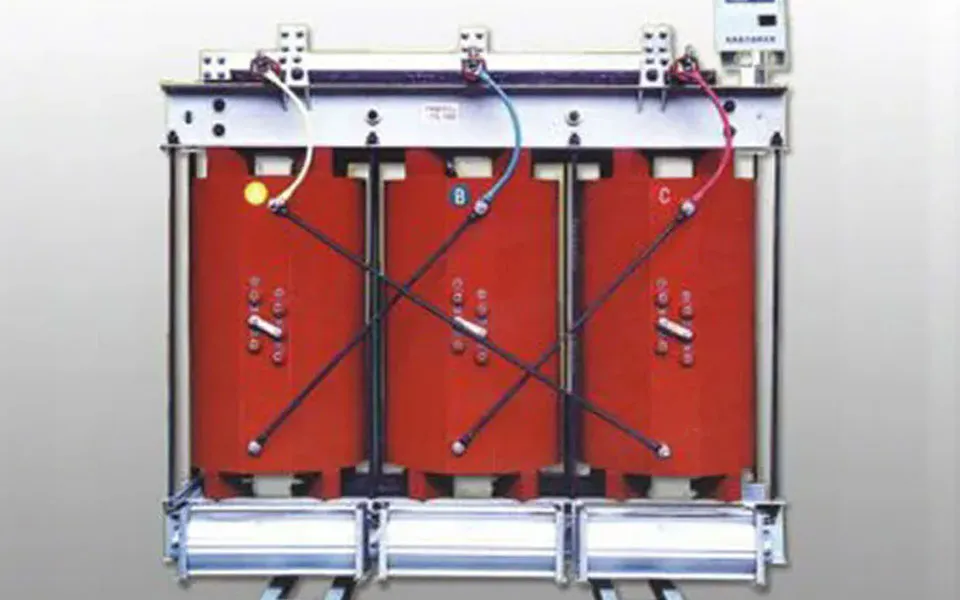

Dry Type Transformer Cooling MethodsFor the cooling of dry type current transformers, the following cooling methods listed below are used.
1. Air Natural
2. Air Blast or forced

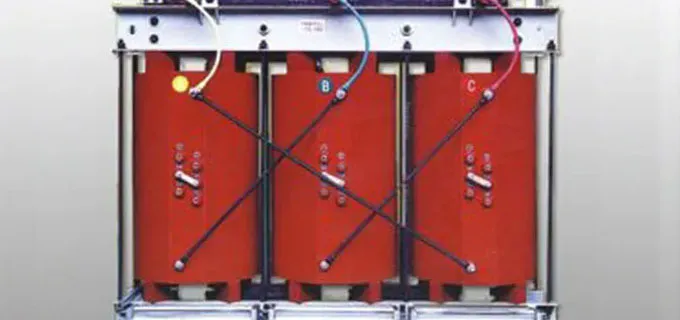

Dry Type Transformer Safety DevicesNot like liquid fill transformers, dry type power transformer use simply high-temperature insulation systems as they are very safe environmentally. Dry cast resin transformers is available from 5KVA to 30MVA with insulation grade F(155°C) and H(180°C). It's with Protection up to IP56.

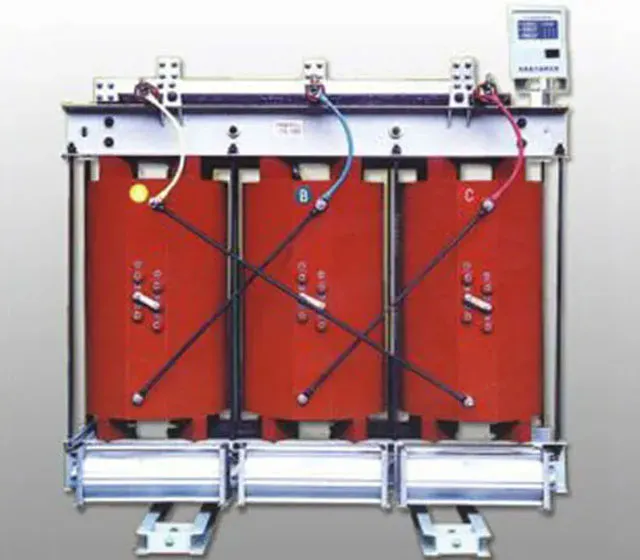

Dry Type Transformer TypesFor various needs for capacity, Yuebian Electric divide our products into 30 kva, 75 kva, 150 kva, 500 kva, 750 kva, 2500 kva dry type transformers.
Send us your detail requirements, we have professional service team to answer you ASAP!
Thank you for your attention on YUEBIAN ELECTRIC!We adopt advanced production system and innovaitive technoloy to improve the product quality and cost. Our dry type transformer price is very competitive. Get a Price!
