GGD AC LV fixed type switchgear is applicable to the distribution system with AC 50Hz, rated working voltage 380V, rated current to 3150A below in power station, substation, plant enter-prise etc., used for power transfer, distribution and control for power, lighting and distribution devices. The product has characteristics of high breaking capacity, fine dynamic and thermal stability, flexible electric project,convenient combination, better serial practicability, novel structure and high protection grade etc. It accords with the standards IEC439 "Low voltage complete switch device and control device" and GB7251.1 "Low voltage complete switch device" etc.
1. Ambient air temperature: -5℃ ~+40℃ and the average temperature should not exceed +35℃ in 24h.
2. Install and use indoors. Altitude above sea level for operation site should not exceed 2000M.
3. Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually.
4. Installation gradient not exceed 5°.
5. Install in the places without fierce vibration and shock and the sites insufficient to erode the electrical components.
6. Any specific requirement, consult with manufactory.

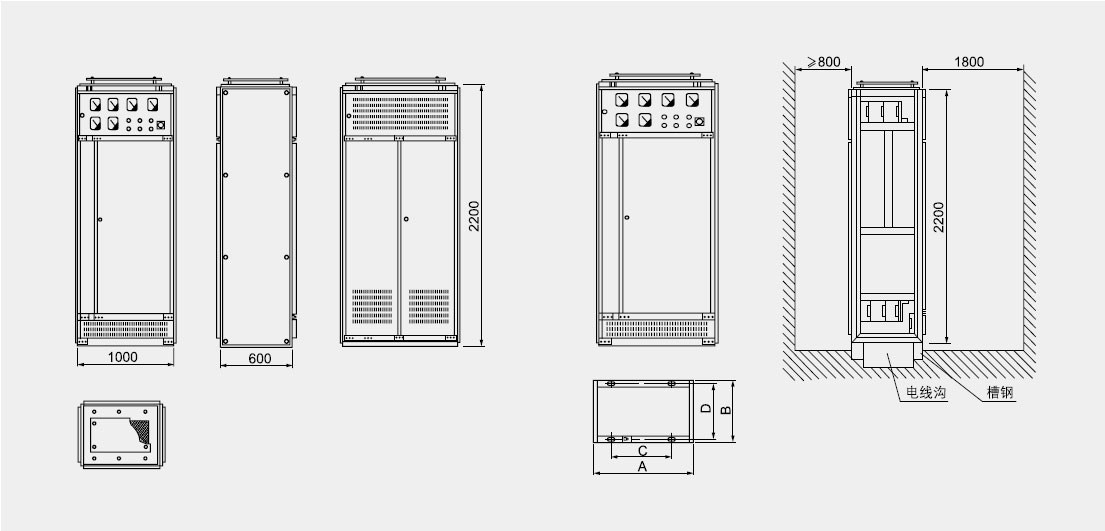

Product code | A | B | C | D |
GGD06 | 600 | 600 | 450 | 556 |
GGD06A | 600 | 800 | 450 | 756 |
GGD08 | 800 | 600 | 650 | 556 |
GGD08A | 800 | 800 | 650 | 756 |
GGD10A | 1000 | 600 | 850 | 556 |
GGD10A | 1000 | 800 | 850 | 756 |
GGD12 | 1200 | 800 | 1050 | 756 |
Type | Rated voltage(V) | Rated current(A) | Rated short circuit breaking current(kA) | Rated short time withstand current(kA) | Rated peak withstand current(kA) |
GGD1 | 380 | 1000 600(630) 400 | 15 | 15 (1S) | 30 |
GGD2 | 380 | 1500 1600 1000 | 30 | 30 (1S) | 63 |
GGD3 | 380 | 3150 (2500) 2000 | 50 | 50 (1S) | 105 |
