AC LV Fixed Switchgear

Name: AC LV Fixed Switchgear
Brand: YueBian Electric Co.,Ltd

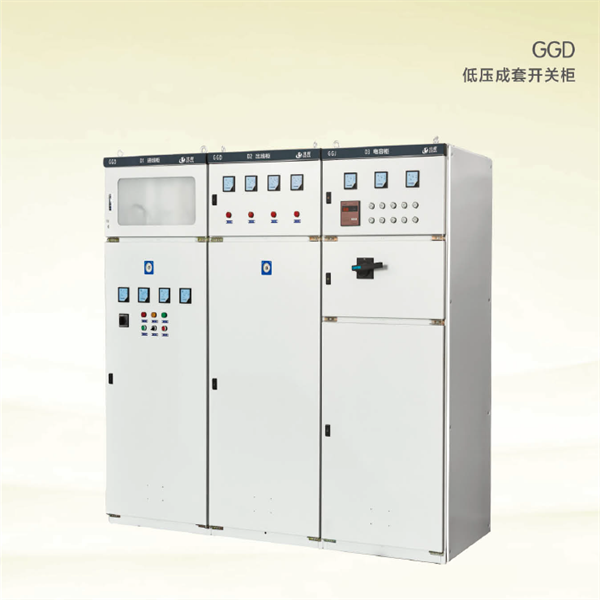

GGD AC LV fixed type switchgear is applicable to the distribution system with AC 50Hz, rated working voltage 380V, rated current to 3150A below in power station, substation, plant enter-prise etc., used for power transfer, distribution and control for power, lighting and distribution devices.The product has characteristics of high breaking capacity, fine dynamic and thermal stability, flexible electric project,convenient combination, better serial practicability, novel structure and high protection grade etc.It accords with the standards IEC439 “Low voltage complete switch device and control device” and GB7251.1 “Low voltage complete switch device” etc.

FREE QUOTE

Products

QUOTE NOW

Introduction
Specification
Contact Now

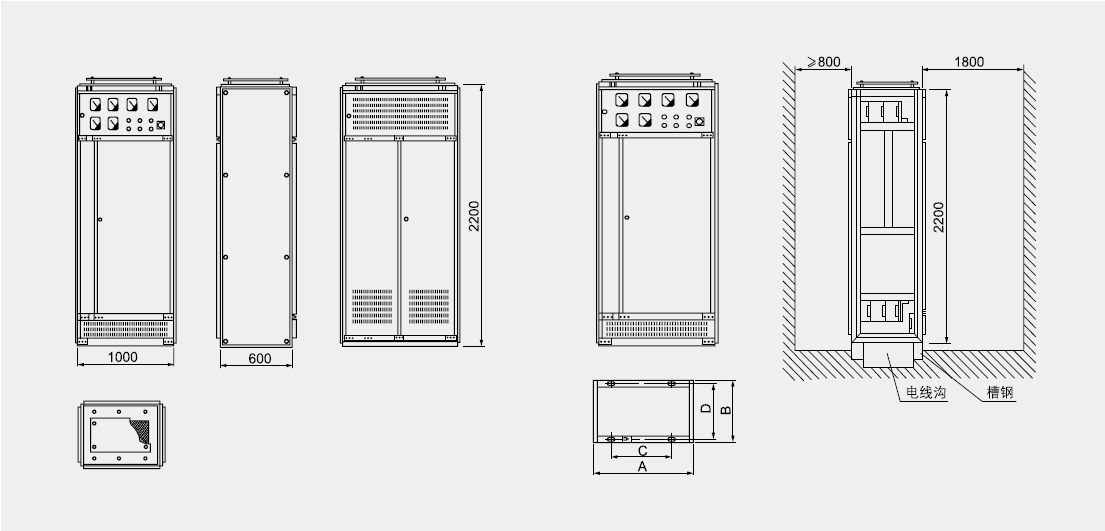

Internal structure

Product code	A	B	C	D
GGD06	600	600	450	556
GGD06A	600	800	450	756
GGD08	800	600	650	556
GGD08A	800	800	650	756
GGD10A	1000	600	850	556
GGD10A	1000	800	850	756
GGD12	1200	800	1050	756

Main Technical Parameters

Type	Rated voltage(V)	Rated current(A)	Rated short circuit breaking current(kA)	Rated short time withstand current(kA)	Rated peak withstand current(kA)
GGD1	380	1000 600(630) 400	15	15 (1S)	30
GGD2	380	1500 1600 1000	30	30 (1S)	63
GGD3	380	3150 (2500) 2000	50	50 (1S)	105

Use environmental conditions

1. Ambient air temperature: -5℃ ~+40℃ and the average temperature should not exceed +35℃ in 24h.

2. Install and use indoors. Altitude above sea level for operation site should not exceed 2000M.

3. Relative humidity should not exceed 50% at max temperature +40℃. Higher relative humidity is allowed at lower temperature. Ex. 90% at +20℃. But in view of the temperature change, it is possible that moderate dews will produce casually.

4. Installation gradient not exceed 5°.

5. Install in the places without fierce vibration and shock and the sites insufficient to erode the electrical components.

6. Any specific requirement, consult with manufactory.
