SG(B) 10 Type 10kv Series Non Encapsulated Coil Transformer

General introduction of SGB10 Cast Resin Transformer:

Cast Resin Transformer, is well applied in power plant substation with low voltage device, high voltage device, transformer and other components integrated, greatly recognized by its functional and energy saving properties. It is safe, non-pollute, and flame proof which can be installed directly on the load centre with the merits of free maintenance, easy installation, low combined operation cost, low loss and excellent humidity resistance.

  • Introduction
  • Specification
  • Contact Now

Service condition:

The height above the sea level is below 1000m.

Ambient temperature:

Highest air temperature +40ºC

Highest daily average air temperature +30ºC

Highest annual average air temperature+20v

Lowest outdoor air temperature-25ºC


The scope of application:

Applies to high fireproofing, load fluctuating, unventilated, incommodious, dirty and moist environment such as power plant field, subway, metallurgy, hospital, high-rise building, shipping center, crowded resident zone, and the special environment such as petrol-land chemical industry, nuclear power station, nuclear submarine.


Product features(advantages )of SGB10 Cast Resin Transformer:

A.Good heat emission, big overload capacity. Can work without wind machine for a long time under 130 overloads, and be full load without compulsive wind cool without capacity descending under IP45 condition.

B.Perfect safe and resistance to fire operating can be combusting for long period under 800ºC and without smoke

C.Strong resistance to thermal shock(can be full load immediately at -50ºC)

D.Complete waterproof and airproof.

E.No partial discharge

F. Good hydrophobicity and good resistance to alkaline cauterization and fundal influence

G. Environmental, low noise, no deleterious gas, easy to decomposition.

What is Non-Encapsulated Coil Dry-Type Transformer?

The Non-encapsulated coil dry-type transformer is characterized by safety,reliability,energy saving,fire protection,anti-explosion,simple maintenance,etc.The well-designed coil structure and vacuum impregnation treatment process makes the dry type transformer free of partial discharge and free of fracturing or insulation level decline during the whole shelf life.All products are qualified by National Mechanical & Industrial Bureau and National Power Company. It is widely used in power network, projects,grid construction,etc.

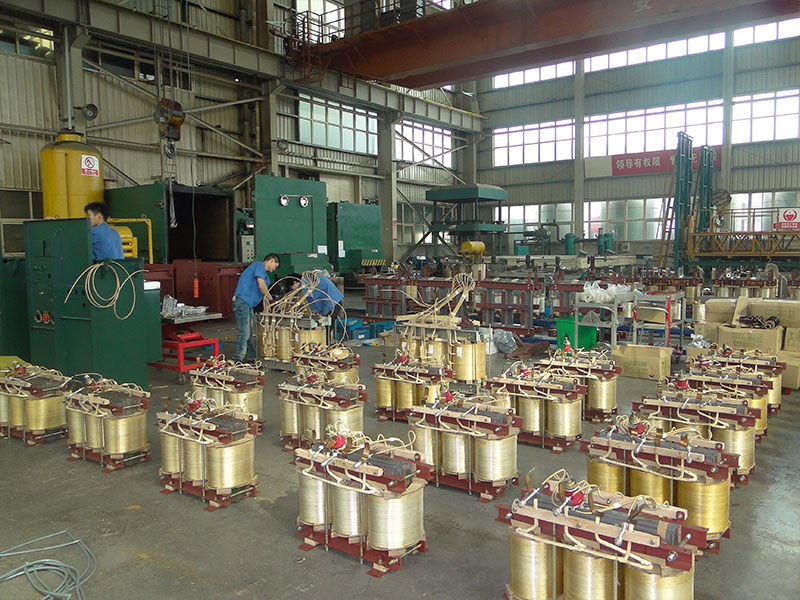

Production Process of SG(B) 10 Type 10kv Series Non Encapsulated Coil Transformer

Specification of SG(B) 10 Type 10kv Series Non Encapsulated Coil Transformer

Technical Data of 11kV SGB10 H-Grade Environmental Protection Dry Type Power Transformer




Loss (kW)





(mm)

(mm)

Rated Capacity

Voltage Group(kV)

Connection Method


         (145)

No-load current

Impedance

Insulation Level

Weight

(L)

(W)

(H)

(L)

(W)

(H)

(kVA)

HV

LV

No-load

Load

%

%


(kg)

Dimension

Outline dimension with protective casing

80




0.37

1.75

2.2



490

950

550

910

1250

1000

1330

100




0.4

2.17

2



520

950

600

910

1280

1100

1330

125




0.47

2.59

1.8



650

970

600

920

1300

1050

1350

160




0.545

3.1

1.8



740

1000

710

965

1330

1050

1350

200




0.625

3.97

1.6

4


850

1040

710

990

1360

1100

1400

250

11



0.72

4.68

1.6



1005

1090

710

1045

1400

1150

1450

315

11



0.88

5.61

1.4



1270

1120

710

1120

1500

1200

1500

400

10

0.4

Dyn11

0.975

6.63

1.4


F/F

1470

1240

850

1185

1600

1250

1600

500


Yyn0

1.16

7.95

1.4



1750

1290

850

1220

1650

1300

1650

630

6.3



1.3

9.78

1.2



1900

1500

870

1370

1850

1300

1650

800

6



1.52

11.56

1.2



2290

1550

870

1570

1900

1300

1800

1000




1.77

13.35

1.1



2700

1600

870

1665

1950

1300

1950

1250




2.09

15.64

1.1

6


3130

1680

1120

1765

2050

1350

2000

1600




2.45

18.11

1.1



3740

1750

1120

1860

2100

1400

2100

2000




3.32

21.25

1



4500

1870

1120

1880

2150

1500

2200

2500




4

24.74

1



5340

2120

1120

1950

2400

1500

2200

(Note): (Tapping range of high voltage) ±4×2.5% or ±3×2.5%, Frequency: 50Hz.

Send us your detail requirements, we have professional service team to answer you ASAP!

Thank you for your attention on YUEBIAN ELECTRIC!

We offer Oil immersed transformers, Dry type transformers, Compact transformer substations, etc.
